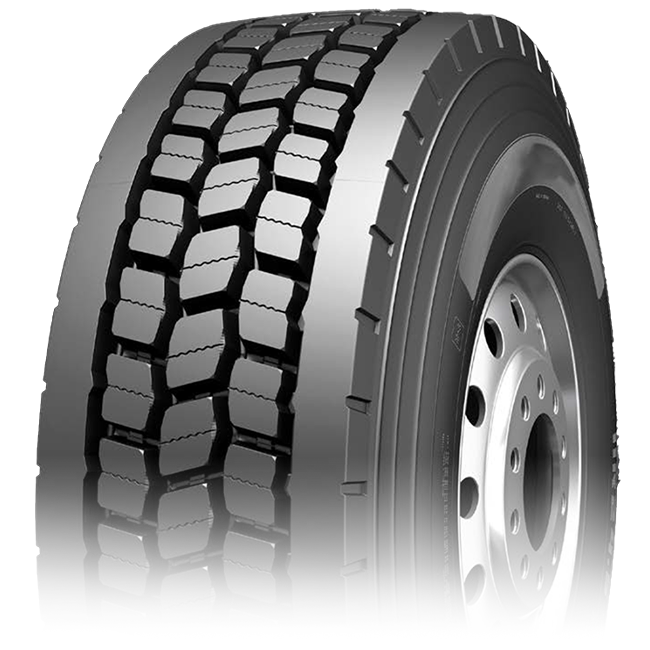

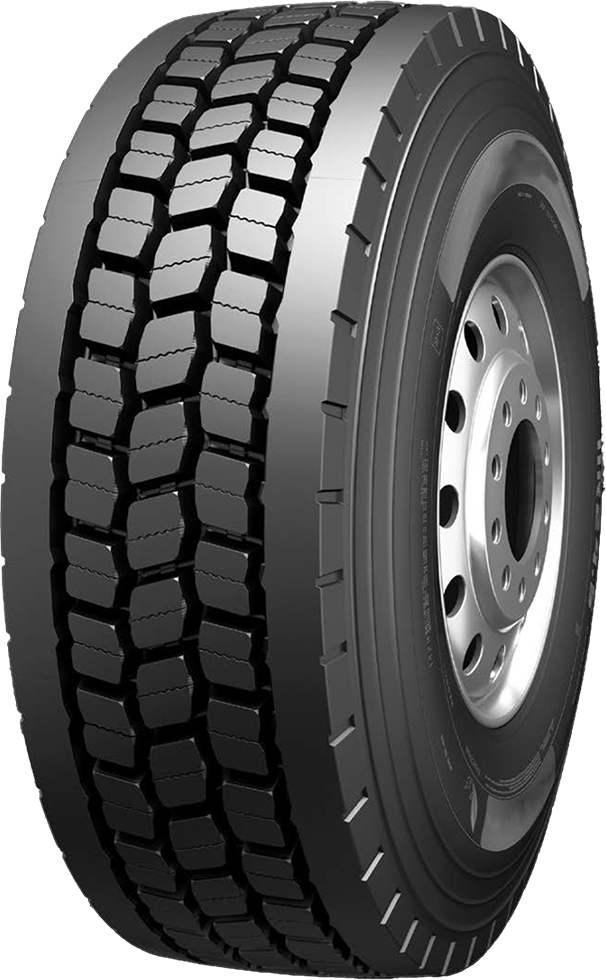

CD885 R3
TOP CLOSED SHOULDER DRIVE
The RoadX CD885 R3 closed shoulder drive tire features a 240mm tread width and 30/32" tread depth for extended tread life and exceptional cost per mile. The solid shoulder design and extra wide tread footprint deliver superior stability and resistance to uneven wear. The EcoPoint3 tread compound provides industry leading low rolling resistance without compromising tread mileage. The CD885 R3 is designed with three rows of aggressive tread blocks for a combination of traction and mileage. The CD885 R3 is an ideal tire for long-haul highway drive axle applications where performance and durability matter most.
Gallery
Features
- Deep tread depth for excellent tread life.
- Aggressive tread design for superior traction.
- Solid shoulders resist uneven wear.
- 240 mm tread width.
- EcoPoint3 tread compound for low rolling resistance.
Applications
- Line Haul Trucks
- Regional Trucks
- Pick-up & Delivery Trucks
Downloads
| Size | Ply | T.D. | Load Index | S.S. | O.D. | S.W. | S.L.R. | R.W. | Load Carrying Capacity | |
|---|---|---|---|---|---|---|---|---|---|---|
| Single lbs. | Dual lbs. | |||||||||
| 11R22.5 | 16 | 30 | 146/143 | L | 41.9 | 11.0 | 19.3 | 8.25 | 6610@120 | 6005@120 |
| 295/75R22.5 | 14 | 30 | 144/141 | L | 40.4 | 11.7 | 18.7 | 9.00 | 6175@110 | 5675@110 |
| 11R24.5 | 16 | 30 | 149/146 | L | 43.9 | 11.0 | 20.3 | 8.25 | 7160@120 | 6610@120 |
