CD871 R3
CLOSED SHOULDER DRIVE

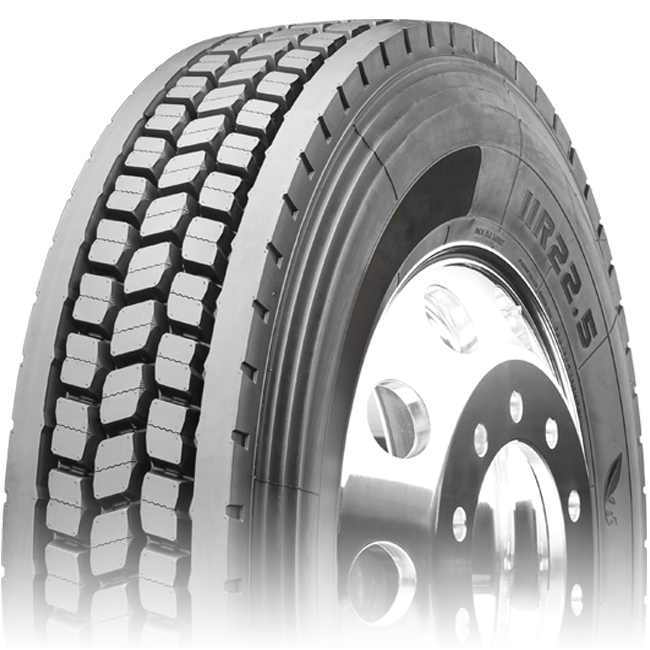

The RoadX CD871 R3 closed shoulder drive tire features 30/32” tread depth for long tread life and exceptional cost per kilometer. Solid shoulder ribs deliver superior stability and resistance to uneven wear. The CD871 R3 is designed with three rows of aggressive tread blocks for superior traction and resistance to tread squirm.
Gallery
Features
- Deep tread depth for excellent tread life.
- Aggressive tread design for superior traction.
- Solid shoulders resist uneven wear.
Applications
- Line Haul Trucks
- Regional Trucks
- Pick-up & Delivery Trucks
Downloads
| Size | Ply | T.D. | Load Index | S.S. | O.D. | S.W. | S.L.R. | R.W. | Load Carrying Capacity | |
|---|---|---|---|---|---|---|---|---|---|---|
| Single lbs. | Dual lbs. | |||||||||
| 11R22.5 | 14 | 30 | 144/142 | L | 42.2 | 11.0 | 19.3 | 8.25 | 6175@105 | 5840@105 |
| 11R22.5 | 16 | 30 | 146/143 | L | 42.2 | 11.0 | 19.3 | 8.25 | 6610@120 | 6005@120 |
| 295/75R22.5 | 14 | 30 | 144/141 | L | 40.6 | 11.7 | 18.7 | 9 | 6175@110 | 5675@110 |
| 11R24.5 | 14 | 30 | 146/143 | L | 44.2 | 11.0 | 20.3 | 8.25 | 6610@105 | 6005@105 |
| 11R24.5 | 16 | 30 | 149/146 | L | 44.2 | 11.0 | 20.3 | 8.25 | 7160@120 | 6610@120 |
| 285/75R24.5 | 14 | 30 | 144/141 | L | 42 | 11.1 | 19.4 | 8.25 | 6175@110 | 5675@110 |
* Pending Smartway verification by U.S. EPA.
