TR528 R3
PREMIUM TRAILER

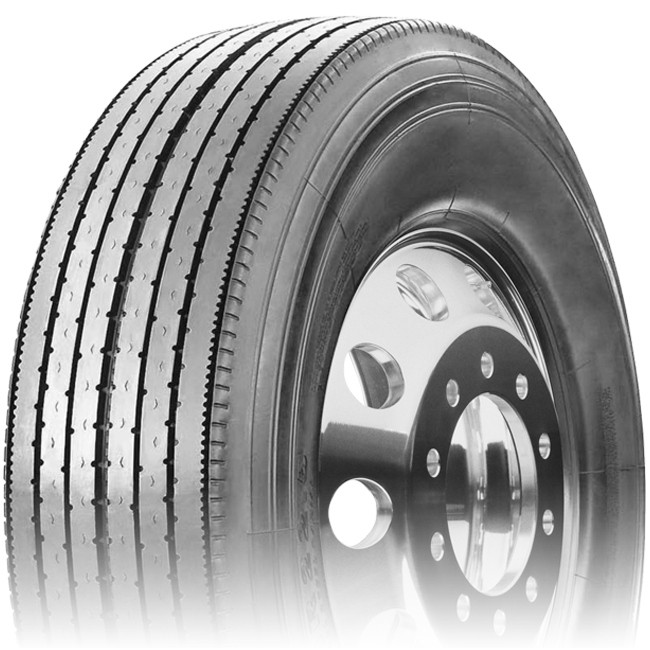

The RoadX TR528 R3 is designed specifically for trailer applications. The TR528 R3 is engineered with an advanced rubber compound which delivers excellent tread wear and fuel saving performance. The TR528 R3’s tread design resists irregular wear and minimizes skid wear. Its wide center groove features “stone ejectors” to prevent stone drilling, thereby extending tire life and improving retreadability.
Gallery
Features
- Shallow tread reduces irregular wear.
- Optimized casing reduces rolling resistance.
- Solid shoulder ribs minimize skid wear.
Smartway Verified
Applications
- Tandem Axle Trailers
- Single Axle Trailers
Downloads
| Size | pr | T.D. | Load Index | S.S. | O.D. | S.W. | S.L.R. | R.W. | Load Carrying Capacity | |
|---|---|---|---|---|---|---|---|---|---|---|
| Single lbs. | Dual lbs. | |||||||||
| 11R22.5 | 14 | 12 | 144/142 | M | 41.5 | 11.0 | 19.3 | 8.25 | 6175@105 | 5840@105 |
| 11R24.5 | 14 | 12 | 146/143 | M | 43.5 | 11.0 | 20.3 | 8.25 | 6610@105 | 6005@105 |
| 295/75R22.5* | 14 | 12 | 144/141 | M | 40 | 11.7 | 18.7 | 9 | 6175@110 | 5675@110 |
| 285/75R24.5 | 14 | 12 | 144/141 | M | 41.3 | 11.1 | 19.4 | 8.25 | 6175@110 | 5675@110 |
* Size available in Vietnam Only
