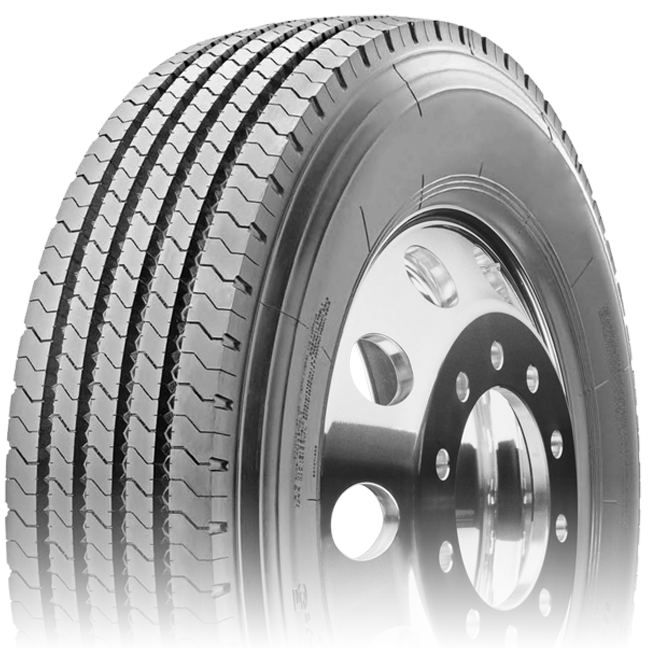

RH648 R3
REGIONAL HIGHWAY ALL POSITION
The RoadX RH648 R3 Regional All Position is optimized for steer axles. The RH648 features a broad 5 rib tread pattern to provide precise handling and excellent stability. Wide circumferential grooves efficiently evacuate water from the tread area and feature “stone ejectors” to prevent stone drilling for a long casing life and improved retreadability. The RH648 R3 is ideally suited for regional line haul applications, pick-up and delivery and highway service.
Gallery
Features
- Broad 5 rib design delivers precise handling.
- Wide circumferential grooves.
- “Stone Ejectors” minimize stone drilling.
Applications
- Regional Trucks
- Dump Trucks
- Refuse Trucks
- Pick-up & Delivery Trucks
- Intrastate & Local Buses
Downloads
| Size | Ply | T.D. | Load Index | S.S. | O.D. | S.W. | S.L.R. | R.W. | Load Carrying Capacity | |
|---|---|---|---|---|---|---|---|---|---|---|
| Single lbs. | Dual lbs. | |||||||||
| 11R22.5 | 14 | 19 | 144/142 | M | 41.4 | 10.9 | 19.3 | 8.25 | 6175@105 | 5840@105 |
| 11R22.5 | 16 | 19 | 146/143 | M | 41.4 | 10.9 | 19.3 | 8.25 | 6610@120 | 6005@120 |
| 295/75R22.5 | 14 | 19 | 144 /141 | M | 40 | 11.7 | 18.7 | 9 | 6175@110 | 5675@110 |
| 11R24.5 | 14 | 19 | 146/143 | M | 43.4 | 10.9 | 20.3 | 8.25 | 6610@105 | 6005@105 |
| 11R24.5 | 16 | 19 | 149/146 | M | 43.4 | 10.9 | 20.3 | 8.25 | 7160@120 | 6610@120 |
| 285/75R24.5 | 14 | 19 | 144/141 | M | 41.4 | 11 | 19.4 | 8.25 | 6175@110 | 5675@110 |
